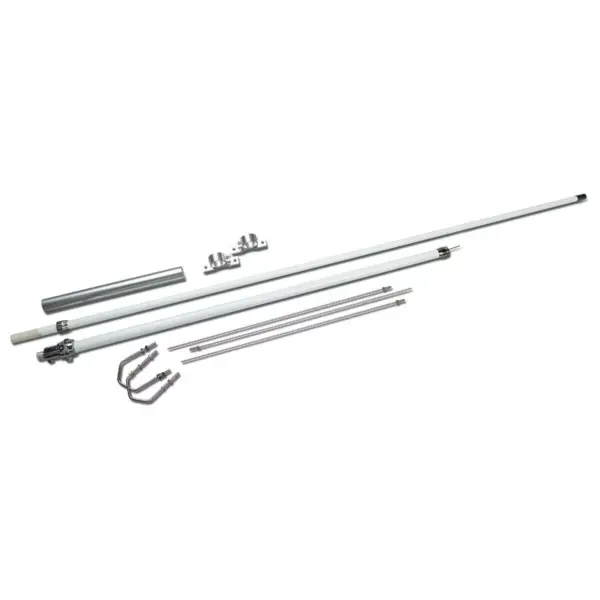

Diamond X-200 2m/70cm Dualband Base Antenna

£89.00

About Diamond X-200 2m/70cm Dualband Base Antenna

2m/70cm Dual band Base Antenna

Diamond Original base antenna-Japan double band.

Key Features

  • Fiberglass construction
  • Overlapping outer shells for added strength
  • Strong waterproof joint couplings
  • Stainless steel hardware
  • Wide band performance
  • Factory adjusted no tuning required
  • Highest gain
  • High wind rating
  • DC grounded

Specification

  • Frequency: 144/430 MHz
  • VHF gain: 6.0 dB
  • UHF gain: 8.0 dB
  • Maximum Power: 200 W
  • Impedance: 50 Ohms
  • Wind speed: 50 m / sec
  • VSWR: Less than 1.5: 1
  • Maximum accepted diameter: 30 mm to 62 mm
  • Connector: SO239
  • Length: 2.5m
  • Weight: 1.2 kg
  • Wavelength: 2 x 5/8 (144 MHz) 4 x 5/8 (430 MHz)





1 in stock
